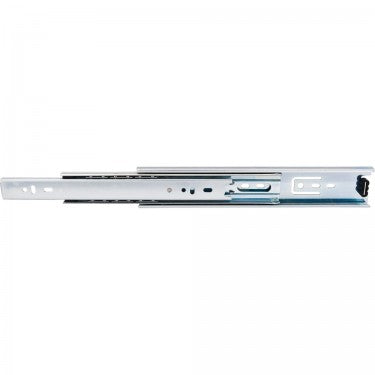

Full Ext. Ball Bearing Slide - 100 lb
100 lb Full Ext. Ball Bearing Slide
* Bulk Packaged - No Screws
* 15 Sets per Box.
* Load Rating: 100lb static, ANSI/BHMA Grade 1
* Travel: Full extension
* Profile Height: 45mm
* Mounting Style: Non-handed side mount with flexible mounting tabs for frameless and face frame cabinetry
* Hole Pattern: Easy access 32mm system hole pattern accepts European and wood screws (6.3mm Euro screw or #8 x 7/16" truss head screw recommended) Search for QS-4460 in our store for the recomended screw.
* Clearance: 1/2" side spacing
* Material: 0.9mm x 0.9mm x 1.2mm cold rolled steel
Finish: Clear zinc electroplated
* Bearing: Lubricated steel ball bearings with cage hold forward - retains cage during drawer member installation
*Release: Non-handed trigger disconnect
* Detent: Synthetic rubber hold-in detent prevents drawer bounce-back and roll-out
* Hardware Resources 303-50 series of slide.
